Products

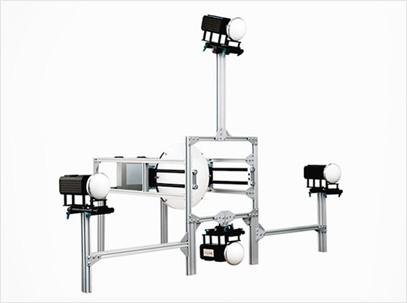

Terahertz imaging cameras

Terahertz imaging cameras

  • Frequency range: 50 GHz – 1.0 THz
  • High responsivity
  • Operating room temperature
  • Compact size and low cost
  • Video mode (50 fps)
  • Terasense Viewer ® Software
  • USB powered (5V)
  • 1.5 year warranty period

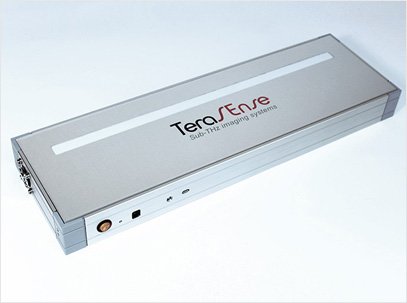

Terahertz imaging scanner

Terahertz imaging scanner

  • Number of pixels: 256 (256 x 1)
  • Pixel size: 1.5 x 3 mm2
  • Imaging area: 384 x 3 mm2
  • Responsivity: 8000 V/W
  • Compact size and low cost
  • Video mode (50 fps)
  • Terasense Viewer ® Software
  • 1.5 year warranty period

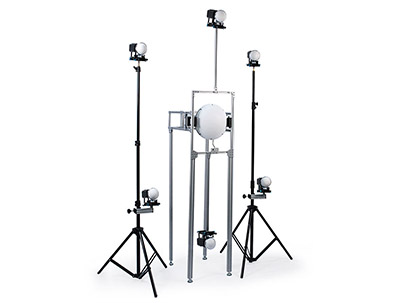

Terahertz security body scanner

Terahertz security body scanner

  • Hidden remote imaging
  • High throughput screening
  • Stand-off imaging from 3 m
  • Requires no infrastructure
    and can be set up in minutes
  • Compact size and low cost

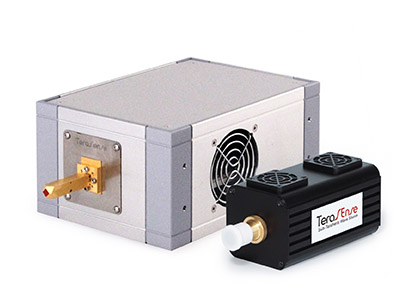

Terahertz Generators (IMPATT Diodes)

Terahertz Sources (IMPATT Diodes)

  • Available frequencies: ∼ 100 GHz and ∼140GHz
  • High power output power: ∼ 80mW and ∼ 30mW (respectively)
  • Protective isolator for enhanced stability
  • Line-width can be narrowed down to 1 MHz
  • TTL modulation option
  • Stable current source (operating current 150-180 mA)
  • High gain horn antenna — or — WR- type flange (outfitted per customer’s choice)
  • 1 year warranty period
Ultrafast Detector_New

Ultrafast Terahertz Detectors

  • Response time: 150 ps
  • Spectral Range: 50 GHz- 1.0 THz
  • Responsivity: 1 V/W
  • Noise Equivalent Power: 1 nW/√Hz
  • SMA output connector
  • Sensitive area: 3 x 3.5 mm
  • Compact size: 23 х 29 х 6.5, mm
  • Customer-focused solutions
Fig-12

Optics for Terahertz

Terasense offers custom-tailored manufacturing of quasi-optical components for THz range: windows, lenses, prisms, attenuators, polarizers, beam splitters.

Have any questions? Please contact us.
